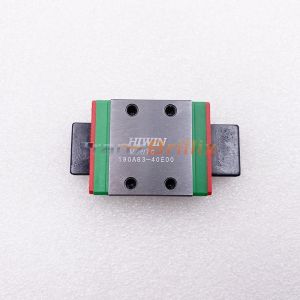

7mm Size Machine Tool Guideways HIWIN MGW7C Easy Installation

Name: 7mm Size Machine Tool Guideways HIWIN MGW7C Easy Installation
Brand: HIMIN
Price: 1 USD

7mm Size Machine Tool Guideways HIWIN MGW7C Easy Installation Manufactures

Brand Name : HIMIN

Model Number : MGW7C

Certification : DE1924083895474

Place of Origin : CHINA TAIWAN

MOQ : 10

Price : 1-100 USD

Payment Terms : T/T,L/C,D/A,D/P,Western Union

Supply Ability : 100000 pcs / per month

Delivery Time : 1-7 work days

Packaging Details : Small or with carton box, Bulk order with Wooden box

Series : MGW-Enlarged width type

Model Size(mm) : 7 mm

No. of Blocks per Rail : 1

Rail Mounting Type : R- Mounting From Top

Rail Length(mm) : Max 600mm

Preload Class : Z0- Very Light Preload , ZF- Light Clearancer

Material : Std- Carbon Steel , M- Stainless Steel

Dust Protection : SS-standard

Y -Symmetrical (E1＝E2) First hole dimension : Y= Symmetrical （E1=E2)

Installation : Easy

Application : CNC Machines, 3D printer

Smoothness : Smooth

Contact Now

①7mm HIWIN Miniature Linear Guideway MGW7C Machine Tool Guideways

As a genuine HIWIN product proudly manufactured in Taiwan, the MGW7C 7mm Miniature Linear Guideway represents the pinnacle of precision motion technology for compact machine tool applications. This premium guideway incorporates HIWIN's decades of engineering expertise into an ultra-slim profile, delivering unmatched reliability in space-constrained industrial environments.

The MGW7C features HIWIN's proprietary recirculating ball bearing technology, ensuring buttery-smooth linear motion perfect for high-precision machining operations. Its rugged construction maintains HIWIN's legendary durability standards while the precision-ground rails provide exceptional straightness and vibration damping characteristics.Ideal for miniature CNC equipment, precision measuring instruments, and automated production systems, this guideway comes with HIWIN's advanced sealing technology to protect against contaminants in demanding workshop conditions.

With immediate availability from our global stock and HIWIN's world-class quality assurance, the MGW7C delivers the perfect combination of miniaturization and performance that professionals expect from the industry's most trusted linear motion brand.

②Drawing of MGW7C

7mm Size Machine Tool Guideways HIWIN MGW7C Easy Installation

③Model Number of MG Series

Note:1.The bottom seal is available for MGN & MGW 9, 12,14.15.
2. MG5 is only supplied with outer recirculation module.

④Construction of MGW Series

1.Rolling circulation system: Block, rail, ball, end cap and retainer [except size 2).
2.Lubrication system: Grease nipple is available for MGW14, 15, lubricated by grease gun.
3.MGW3, 7, 9, 12 are lubricated by the hole at the side of the end cap.
4.Dust protection system: End seal (except size2), bottom seal (optional size 9,12,14,15], cap (size12,14,15).

④Features
1. Tiny and light weight, suitable for miniature equipment.
 2. Gothic arch contact design can sustain loads from all directions and offer highrigidity and
 high accuracy
 3. Steel balls are held by a miniature retainer to avoid balls from falling out, evenwhen the
 blocks are removed from the rail.
 4.Interchangeable types are available in certain precision grades.
 Block: we offers two types of linear guideways, flange and square types
 Rail: we offers standard top mounting type

Model No.	Block length(mm)	Preload classes	Bolt size	Weight(kg)
MGW7C	31.2	Z0/ZF/Z1	4-M3x3	0.02
MGW7H	41	Z0/ZF/Z1	4-M3x3	0.029
MGW9C	39.3	Z0/ZF/Z1	4-M3x3	0.04
MGW9H	50.7	Z0/ZF/Z1	4-M3x3	0.057
MGW12C	46.1	Z0/ZF/Z1	4-M3x3.6	0.071
MGW12H	60.4	Z0/ZF/Z1	4-M3x3.6	0.103
MGW15C	54.8	Z0/ZF/Z1	4-M4x4.2	0.143
MGW15H	73.8	Z0/ZF/Z1	4-M4x4.2	0.215

⑥Measurement drawing
