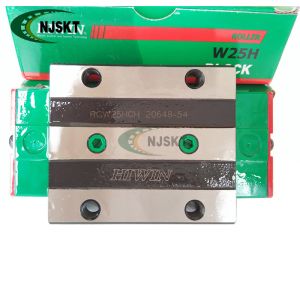

RGW30CC Linear Guide Carriage High Performance Hiwin Linear Slide Guide Block

NanJing TranzBrillix Linear Motion Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

RGW30CC Linear Guide Carriage High Performance Hiwin Linear Slide Guide Block

Brand Name : HIWIN

Model Number : RGW30CC

Certification : DE1924083895474

Place of Origin : CHINA TAIWAN

MOQ : 10

Price : 1-100 USD

Payment Terms : T/T,L/C,D/A,D/P,Western Union

Supply Ability : 100000 pcs / per month

Delivery Time : 1-7 work days

Packaging Details : Small or with carton box, Bulk order with Wooden box

Series : RG

Model Size(mm) : 30mm

No. of Blocks per Rail : 1

Rail Mounting Type : R- Mounting From Top

Rail Length(mm) : Max 4000mm

Preload Class : Z0- Light Preload , ZA- Medium Preload, ZB-Heavy Preload

Material : SNCM220 Carbon Steel

Dust Protection : SS-standard

Y -Symmetrical (E1=E2) First hole dimension : Y= Symmetrical (E1=E2)

Installation : Easy

Application : Automation Systems, Transportation equipment, CNC machining centers, Heavy duty cutting machines

Smoothness : Smooth

Contact Now

①HIWIN RGW30CC Linear Guideway Hiwin Linear Slide Guide Block

Engineered for seamless integration into demanding industrial environments, the RGW30CC features HIWIN's proprietary multi-stage sealing technology that effectively excludes contaminants while maintaining optimal lubrication – critical for preserving performance in harsh manufacturing settings with excessive dust, chips, or coolant exposure. The guide block's reinforced housing provides superior resistance to moment loads, making it particularly suitable for gantry systems, heavy CNC equipment, and automated production lines where stability directly impacts output quality.

The RGW30CC's precision-ground components and oversized rolling elements work in concert to minimize friction-induced heat generation, enabling consistent performance during continuous 24/7 operation. Its adaptable design supports both high-speed positioning and ultra-precise slow-speed applications, offering manufacturers the versatility to meet diverse motion control requirements.

Trusted by machine builders worldwide, this HIWIN linear slide solution exemplifies the brand's commitment to combining industrial-grade durability with refined motion characteristics. Whether deployed in automotive manufacturing systems, aerospace component production, or heavy industrial automation, the RGW30CC Linear Guideway delivers the uncompromising performance that has made HIWIN synonymous with reliability across global industries. The system's balanced design philosophy – merging massive load capacity with precision movement – continues HIWIN's tradition of developing motion solutions that push the boundaries of what's possible in modern industrial automation.


②Drawing of RGW30CC
RGW30CC Linear Guide Carriage High Performance Hiwin Linear Slide Guide Block
③Model Number of RG Series
RGW30CC Linear Guide Carriage High Performance Hiwin Linear Slide Guide Block
④Construction of RG Series
RGW30CC Linear Guide Carriage High Performance Hiwin Linear Slide Guide Block
1.Rolling circulation system: Block, rail, end cap, Circulation path, rollers
2.Lubrication system: Grease nipple and piping joint
3.Dust protection system: End seal, bottom seal,bolt cap, double seals and scraper.
⑤Features of RG series
The new RG series from HIWIN features a roller as the rolling element instead of steel balls. The roller series offers super high rigidity and very high load capacities. The RG series is designed with a 45-degree angle of contact. Elastic deformation of the linear contact surface, during load, is greatly reduced thereby offering greater rigidity and higher load capacities in all 4 load directions.The RG series linear guideway offers high performance for high-precisionmanufacturing and achieving longer service life.
1. Optimal design
FEM analysis was performed to determine the optimal structure of the block and the rail. The unique design of the circulation path allows the RG series linear guideway to offer smoother linear motion.
2.Super high rigidity
The RG series is a type of linear guideway that uses rollers as the rolling elements. Rollers have a greater contact area thanballs so that the roller guideway features higher load capacityand greater rigidity. The figure shows the rigidity of a roller and a ball with equal volume.
3. Super high load capacity
With the four rows of rollers arranged at a contact angle of 45-degrees, the RG series linear guideway has equal load ratings in the radial, reverse radial and lateral directions.The RG series has a higher load capacity in a smaller size than conventional, ball-type linear guideways.
4. Operating life increased
Compare with the ball element, the contact pressure of rolling element is distributed on the line region. Therefore,stress concentration was reduced siginificantly and the RG series offers longer running life. The nominal life of RG seriescan be calculated by using Eq.

⑥Actual product photo

RGW30CC Linear Guide Carriage High Performance Hiwin Linear Slide Guide Block

⑦Measurement drawing
RGW30CC Linear Guide Carriage High Performance Hiwin Linear Slide Guide Block
RGW30CC Linear Guide Carriage High Performance Hiwin Linear Slide Guide Block
HIWIN series
RGW30CC Linear Guide Carriage High Performance Hiwin Linear Slide Guide Block
⑨top product recommendation
RGW30CC Linear Guide Carriage High Performance Hiwin Linear Slide Guide Block
